Реле времени CRM-83J/UNI, ZR 1-10s

Реле времени CRM-83J/UNI, ZR 1-10s
Реле времени CRM-83J/UNI, ZR 1-10s
Реле времени CRM-83J/UNI, ZR 1-10s
Реле времени CRM-83J/UNI, ZR 1-10s
Реле времени CRM-83J/UNI, ZR 1-10s

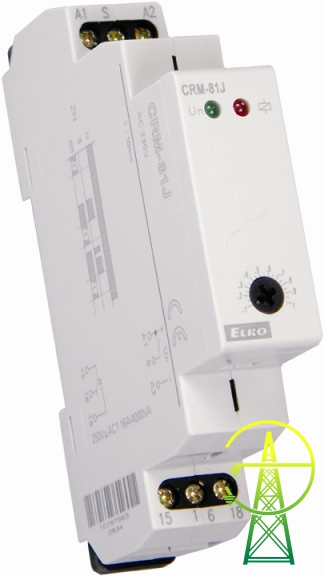

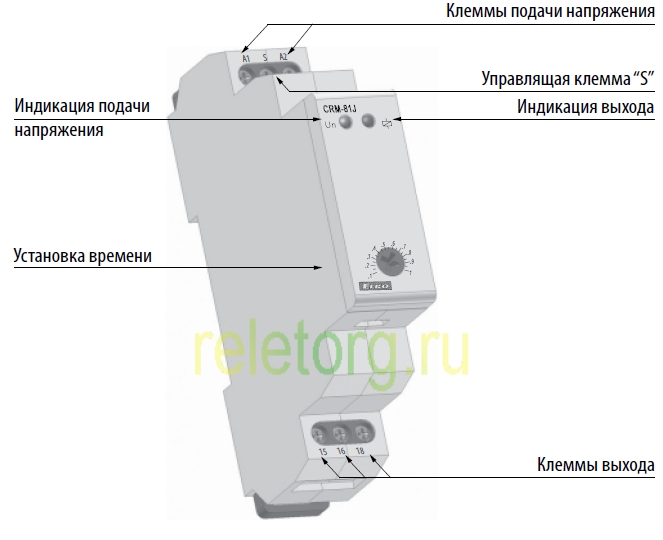

  Реле времени CRM-83J ZR UNI простое одно командное (одно функциональное) аналоговое реле времени, выполняющее функцию задержки на включение выходных (т.е. групп исполнительных контактов) реле в соответствующем временном диапазоне. Основной отличительной особенностью данного реле от других (в том числе CRM-81J ZRCRM-83J ZRPCR-513PCR-515 и их модификаций) является  одновременное наличие трех групп переключающих контактов на выходе реле и расширенное универсальное питание постоянным или переменным током в широком диапазоне значений напряжения от 12 до 240 V. Начало отсчета времени может происходить как от подачи напряжения питания, так и от окончания импульса на управляющем входе, приоритет которого более высокий. Напряжение на входе управления такое же, как напряжение питания.

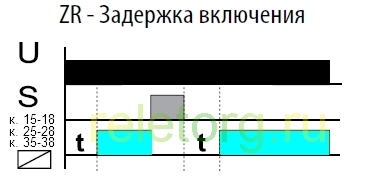

Временная диаграмма работы реле времени

1 649 руб

Артикул 8595188119757
Бренд ElkoEp (-)
Применение (PDF) Загрузить

Описание


<p style="text-align: justify; "><font color="#005824">  Точная настройка времени у серии реле <b>CRM-83J ZR UNI</b>, в рамках данного временного диапазона, осуществляется потенциометром, расположенным на передней панели прибора. Простые и интуитивно понятные элементы управления и подключения показаны </font><a href="http://reletorg.ru/upload/iblock/6f6/6f62ae6e65063ab9f6a96dcd4a94ae41.jpg" title="Показать расположение элементов управления" target="_blank" ><b>на данном изображении</b></a><font color="#005824">.  Положительными особенностями данного реле времени <b>CRM-83J ZR UNI</b> является возможность передачи сигнала задержки по времени в три различные цепи, что исключает необходимость применения дополнительного </font><a href="http://reletorg.ru/catalog/products/00003025/" title="Переход в группу промежуточных реле" target="_blank" ><b>промежуточного реле</b></a><font color="#005824">, и расширенное значение питающего напряжения от 12 до 240V переменным или постоянным током. В данном случае выдержка будет одинаковая, что не стоит путать с </font><a href="http://reletorg.ru/catalog/products/00003718/" title="Переход в группу трех цепных реле" target="_blank" ><b>трех цепным реле времени</b></a><font color="#005824">, где выдержки времени могут быть различны для каждой группы контактов (независимого канала). Состояние вывода указывает красный LED, ширина 1 модуль (18 мм), крепление на DIN-рейку. Временной диапазон конкретно данного реле от 1 до 10 секунд, что является одним из шести (0,1-1 сек., 1-10 сек., 6-60 сек., 1-10 мин., 6-60 мин., 1-10ч.) возможных вариантов у данной серии реле времени.</font></p>

<p style="text-align: justify; "><font color="#005824">  Более подробные технические параметры представлены в ниже приведённой таблице,  в </font><a href="http://reletorg.ru/upload/iblock/092/09202e7bd0a5c4a27c7baae2d42ee3ca.pdf" title="Открытие страницы каталога реле времени" target="_blank" ><b>обзорном листе каталога</b></a><font color="#005824"> производителя и <b><a href="/upload/chr_t/CRM_81J_83J_manual.pdf" title="Инструкция по эксплуатации реле времени CRM-83J/UNI, ZR" target="_blank" >«Инструкции по эксплуатации» </a></b></font><a href="#2316108159721" ><img src="/upload/chr_t/pdf.jpg" border="0" width="16" height="16"  /></a><span style="color: rgb(0, 88, 36); ">.</span></p>

<p> </p>

<table border="1" cellspacing="0" cellpadding="0" style="border-collapse: collapse; border-top-style: none; border-right-style: none; border-bottom-style: none; border-left-style: none; border-width: initial; border-color: initial; border-image: initial; ">
  <tbody>
    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-top-style: solid; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-top-width: 1pt; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p><b>Технические параметры</b></p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: solid; border-right-style: solid; border-bottom-style: solid; border-top-width: 1pt; border-right-width: 1pt; border-bottom-width: 1pt; border-image: initial; border-left-style: none; border-left-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>CRM-83J UNI</b></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Выполняемые функции:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>ZR</b> – задержка включения</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Клеммы питания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">А1-А2</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Напряжение питания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">AC/DC 12-240V (AC 50-60Hz)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Мощность (номинал/ потребляемая)</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">Макс. 12 VA/1.9W</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Допуск напряжения питания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">-15%, +10%</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Индикация питания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">Зелёный LED</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Временной диапазон:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>от  1 до 10 с</b></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Регулировка времени:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">Плавная, потенциометром</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Отклонение времени:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">5% - при механической установке</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Точность повторения:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">0,2% - стабильность настроенного параметра</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Температурный коэффициент:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">0,015/°С, нормальное значение 20°С</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="774" colspan="2" style="width: 464.4pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>Параметры выхода</b></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Количество контактов:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">3 переключающий (AgNi)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Номинальный ток:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">8А / АС1</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Мощность замыкания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">2000 VA/ AC1, 192 W/DC</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Пиковый ток:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">10А<3с</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Напряжение замыкания:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">250V AC1/24V DC</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Мин. замыкающая мощность DC:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">500 mW</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Индикация выхода:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">Красный LED</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Механическая износостойкость:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">3х10<sup>7</sup></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Электрическая износостойкость (АС1):</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">0,7х10<sup>5</sup></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="774" colspan="2" style="width: 464.4pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>Управление</b></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Мощность управляющего входа</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">AC 0.025-0.2VA/DC0.1-0.7W (UNI)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Подключение нагрузки между S-A2:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">Допустимо (UNI)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Клеммы управления:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">А1-S</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Макс. ёмкость управляющего провода:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "> </p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>-без подключения газоразрядн. ламп: </p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">12nF(UNI)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>-с подключ. газоразрядн. ламп:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">9nF (UNI) не допустимо подключение газоразрядн. ламп </p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Длительность упр. импульса:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">min 25 mc/ max - неограничено</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Время восстановления:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">max 150 ms</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="774" colspan="2" style="width: 464.4pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; "><b>Прочие параметры</b></p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Рабочая температура:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">-20…+55°С</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Складская температура:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">-30…+70°С</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Электрическая прочность:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">4 kV (питание-выход)</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Рабочее положение:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">произвольное</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Крепление:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">DIN рейка EN60715</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Защита:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">IP40 со стороны лиц. панели/IP20со стороны клемм</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Категория перенапряжения:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">III.</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Степень загрязнения:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">2</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Сечение подключ. проводов:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">max 1x2,5/ 2x1,5/ с гильзой 1x2,5</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Размер:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">90х17,6х64 мм</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Вес:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">86 г</p>
       </td> </tr>

    <tr style="height: 1pt; "> <td width="266" style="width: 159.5pt; border-right-style: solid; border-bottom-style: solid; border-left-style: solid; border-right-width: 1pt; border-bottom-width: 1pt; border-left-width: 1pt; border-image: initial; border-top-style: none; border-top-width: initial; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p>Соответствие нормам:</p>
       </td> <td width="508" style="width: 304.9pt; border-top-style: none; border-top-width: initial; border-left-style: none; border-left-width: initial; border-bottom-style: solid; border-bottom-width: 1pt; border-right-style: solid; border-right-width: 1pt; background-image: initial; background-attachment: initial; background-origin: initial; background-clip: initial; background-color: rgb(255, 255, 153); padding-top: 0cm; padding-right: 5.4pt; padding-bottom: 0cm; padding-left: 5.4pt; height: 1pt;">
        <p align="center" style="text-align: center; ">EN 61812-1, EN 61010-1</p>
       </td> </tr>
   </tbody>
</table>
Рейтинг@Mail.ru Яндекс.Метрика
